Noise-barrier Composite_TC
HOME > PRODUCTS > Noise Barrier Composite > Noise-barrier Composite_TC

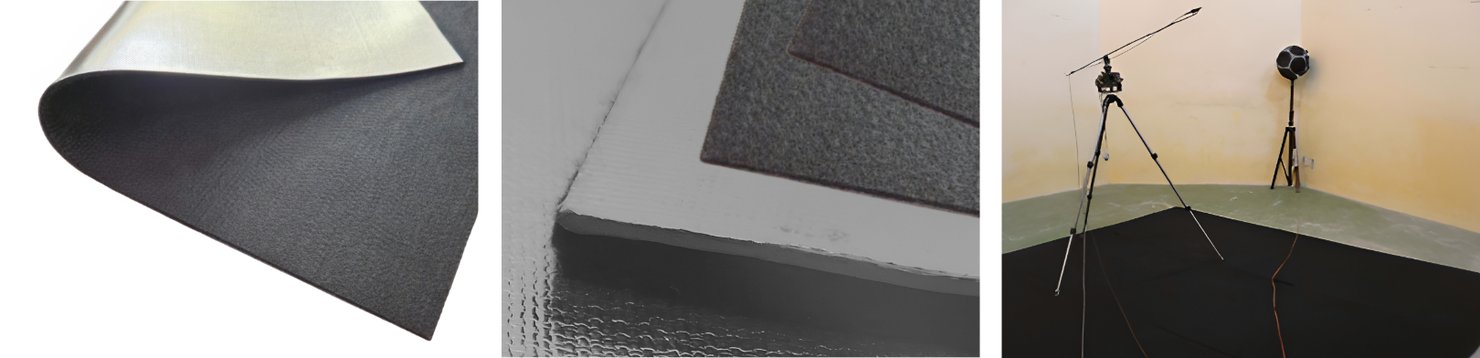

제품 사진
Information

✓ Ultra-slim and lightweight design ensuring effortless installation even in confined spaces

✓ Integrated multi-layer structure combining sound-absorbing, damping, and sound-insulating layers

✓ Superior acoustic insulation and vibration attenuation across broad frequency bands

✓ Engineered with non-toxic, eco-friendly materials that are completely safe for human exposure

✓ RoHS compliant

[ Triple Layer Structure ]

✓ Sound-absorbing Layer : Carbon Felt
✓ Noise-insulating Layer : Zerony TP-F series
✓ Surface Layer : AL/GC (Aluminium-coated Glass Cloth)
Function
제품 개념도 제품 개념도

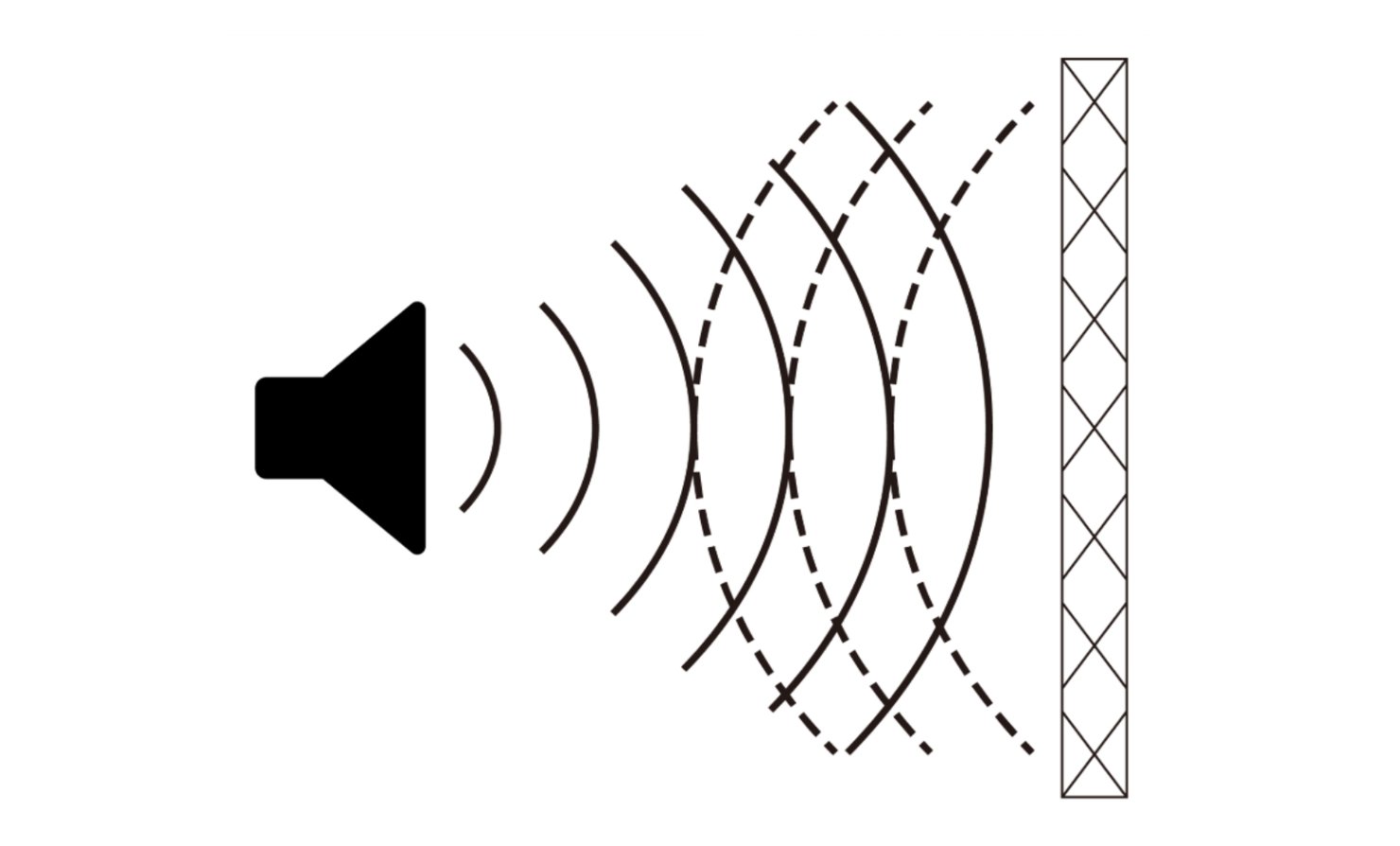

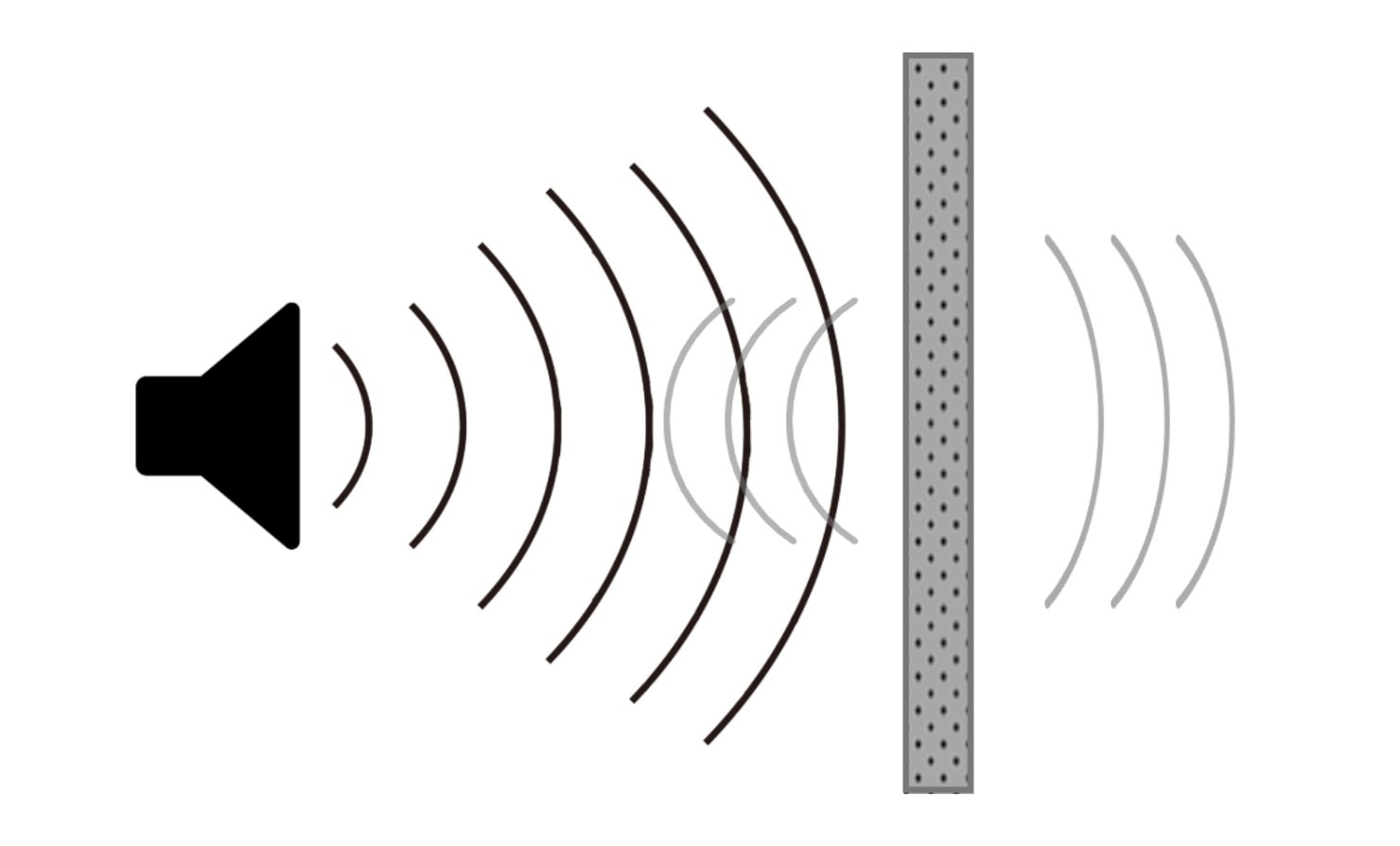

Fig. Sound-absorption Concept                                                                  Fig. Sound-insulation Concept
General Property

✓ Ultra-slim and lightweight design ensuring effortless installation even in confined spaces

✓ Integrated multi-layer structure combining sound-absorbing, damping, and sound-insulating layers

✓ Superior acoustic insulation and vibration attenuation across broad frequency bands

✓ Excellent thermal stability and fire retardant properties

✓ Engineered with non-toxic, eco-friendly materials that are completely safe for human exposure

✓ RoHS compliant
Technical Data
ShapeComposite Sheet (generally Black)
Thickness10 ~ 12 (± 0.2) mm
SizeGenerally 450 x 950 mm
LayerFacing : AL-coated Glass Cloth / Sound-absorption Layer : Carbon Felt 600~1000G / Noise-insulation Layer : Zerony TP-F 2T
Specific GravityTP-F : 2.0 (Max. 2.5) / Carbon Felt : 600G (600 g/M2), 1000G (1000 g/M2)
STC27 dB
NRC0.4
Test condition : Carbon Felt at 10 mm
Fire Property (option)Self-extinguishing, F series : IMO Res.A.653(16)
Test condition : IMO Res. A. 653(16)
Values without a stated test standard are measured in-house.
Source : 제품 카탈로그 (physical_property 표) (2026-09-07)
Special Property
차음 성능 그래프흡음 성능 그래프

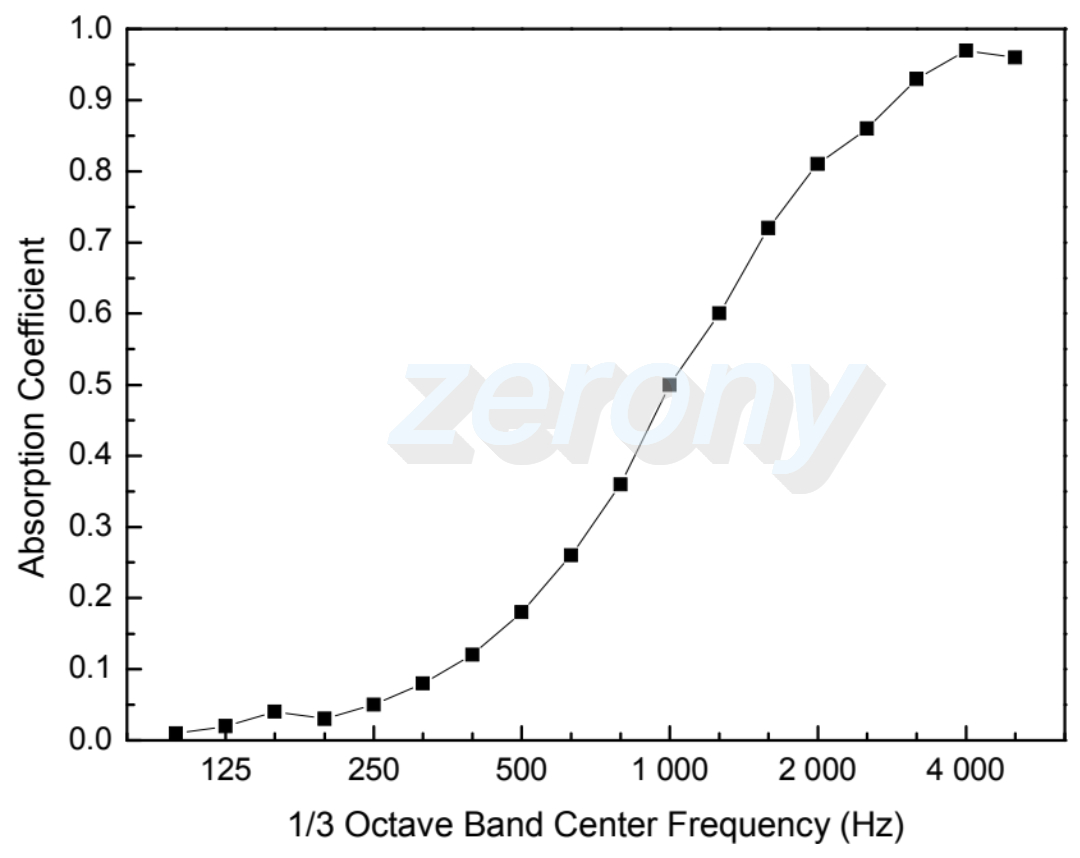

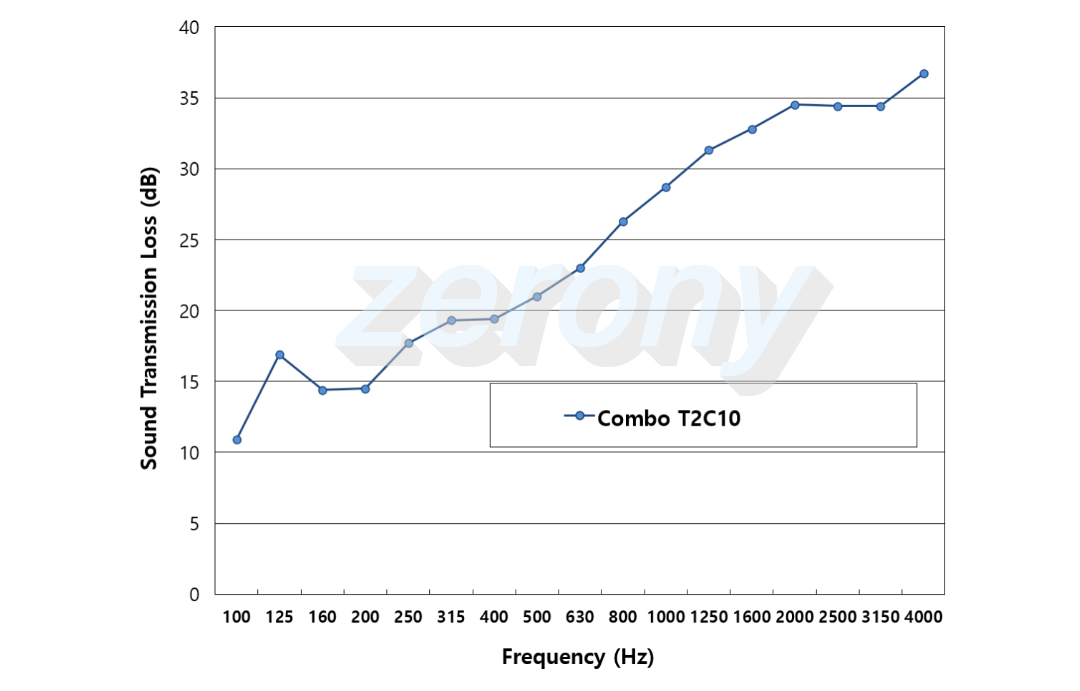

(a) Sound-insulation Property (TP-2)                                            (b) Sound-absorption Property (Carbon Felt)
Fig. Acoustic Properties of Noise Barrier Curtain

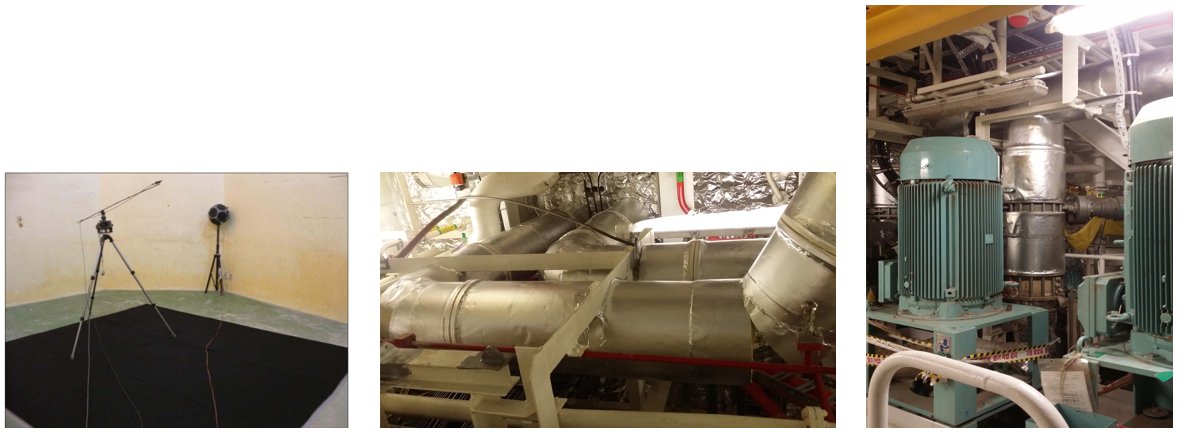

Applications
용도 안내
