Damping Rubber_DR
HOME > PRODUCTS > Noise & Vibration Damping Materials > Damping Rubber_DR
Information
✓ Advanced anti-vibration rubber sheets designed for highly effective noise and vibration control
✓ Ideal for use as machinery mounts, installed beneath vibration-generating equipment
✓ Serves as load-bearing pads for structural weight distribution
✓ Provides exceptional isolation of structure-borne noise when applied to ceiling hangers

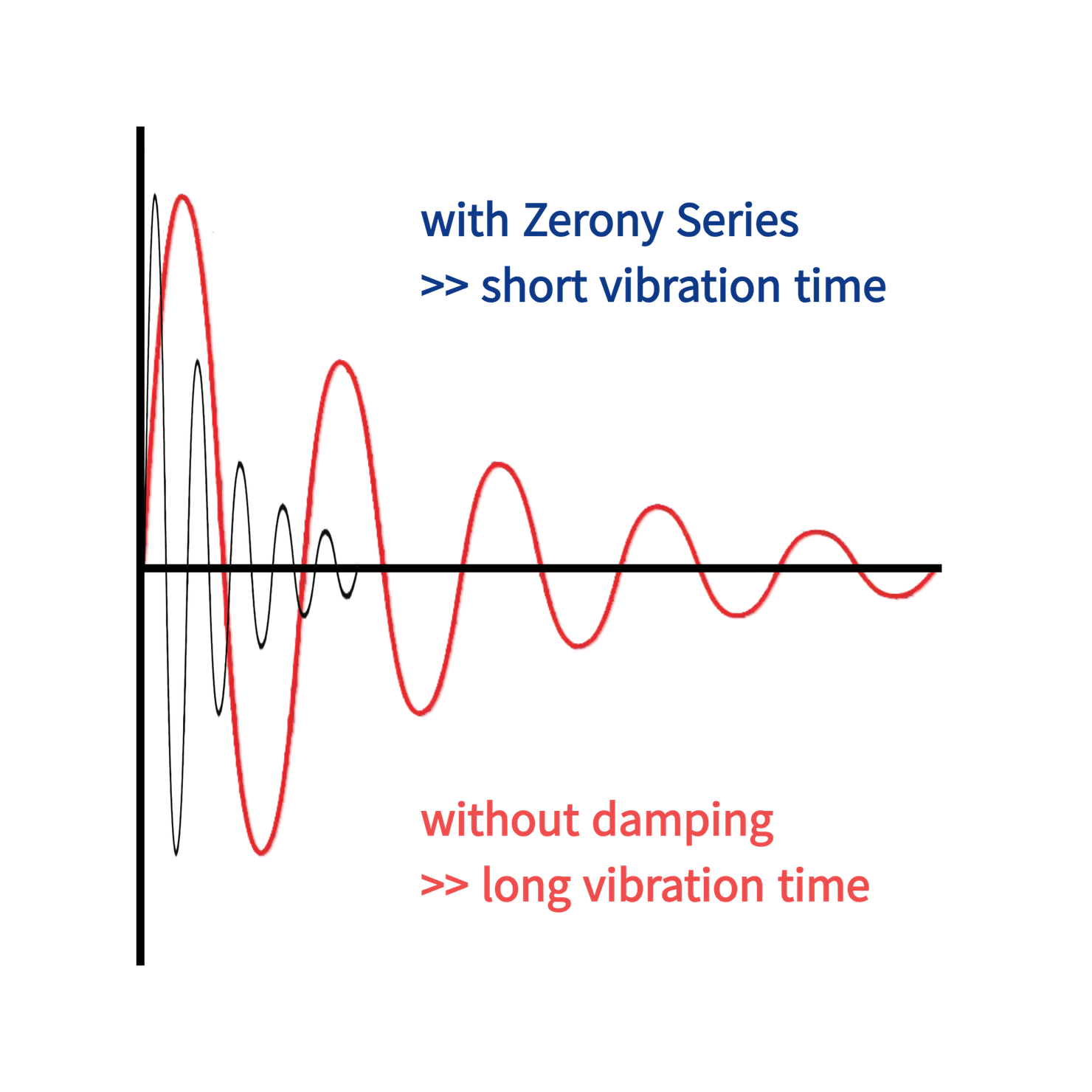

✓ Delivers superior damping performance to effectively dissipate vibration energy and prevent resonance propagation
✓ Engineered for high design flexibility, capable of being molded into diverse custom geometries
✓ Suitable for overmolding and bonding with metal substrates to form robust composite structures
Function
General Property

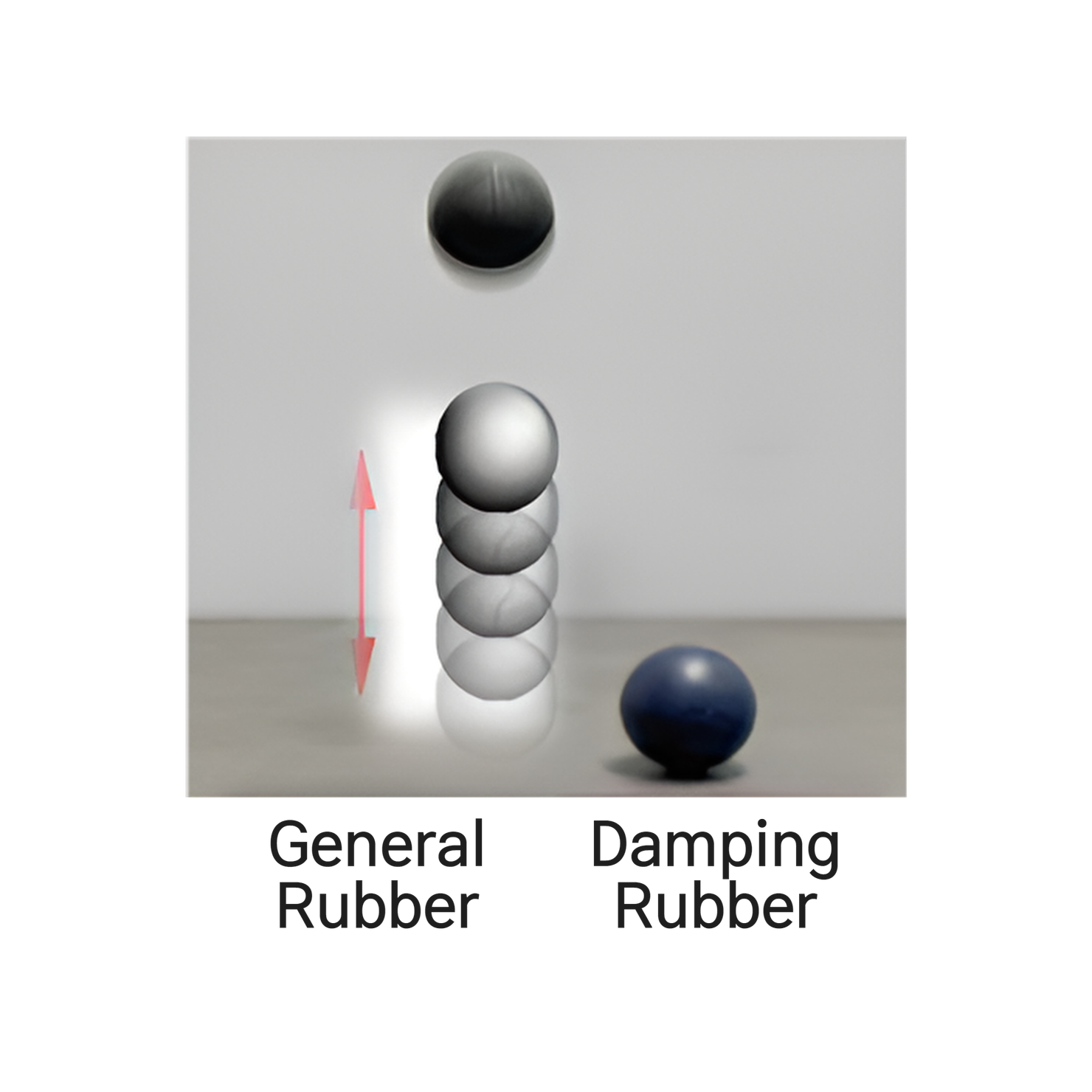

✓ Exhibits exceptional damping performance across a wide frequency range
✓ Delivers outstanding vibration absorption and high loss factor (η) capabilities
✓ Provides highly effective isolation against structure-borne noise
✓ Offers superior reduction of impact sound, ideal for floor damping systems
✓ Optimized for bonding with steel plates to create high-performance CLD structures
✓ Highly versatile, customizable into complex geometries through molding and die-cutting
✓ Adjustable durometer hardness and mechanical properties tailored to application specifications
✓ Features excellent compression set resistance and long-term elastic recovery
✓ RoHS compliant
Technical Data

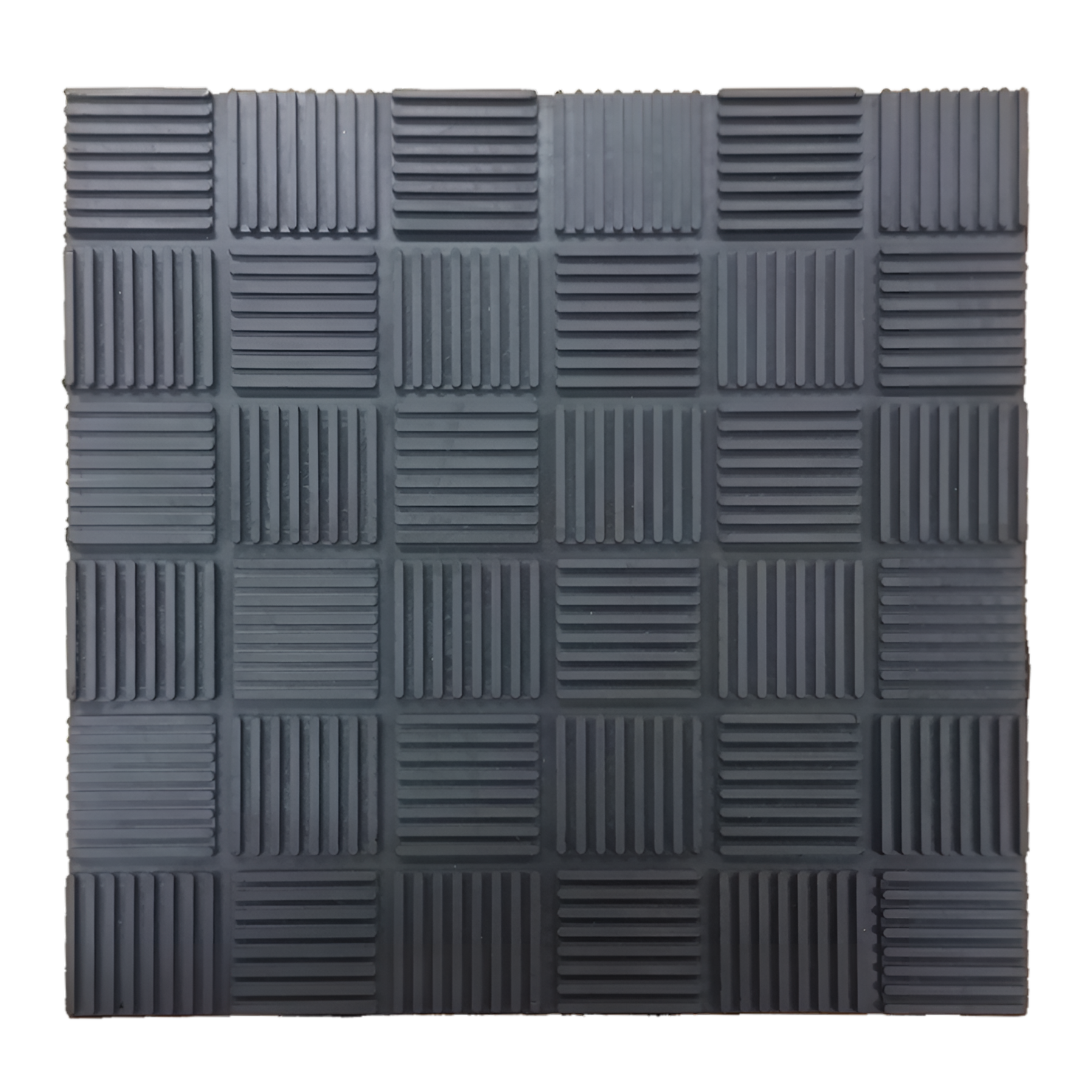

ShapePads, Mounts, Hangers, and Various Shapes
ThicknessDR-SP : 10 mm
SizeDR-SP : 300 x 300 mm
Hardness30 ~ 80
Loss Factor (η)0.1 ~ 0.3
RemarksMade to Order
Values without a stated test standard are measured in-house.
Source : 제품 카탈로그 (physical_property 표) (2026-09-07)

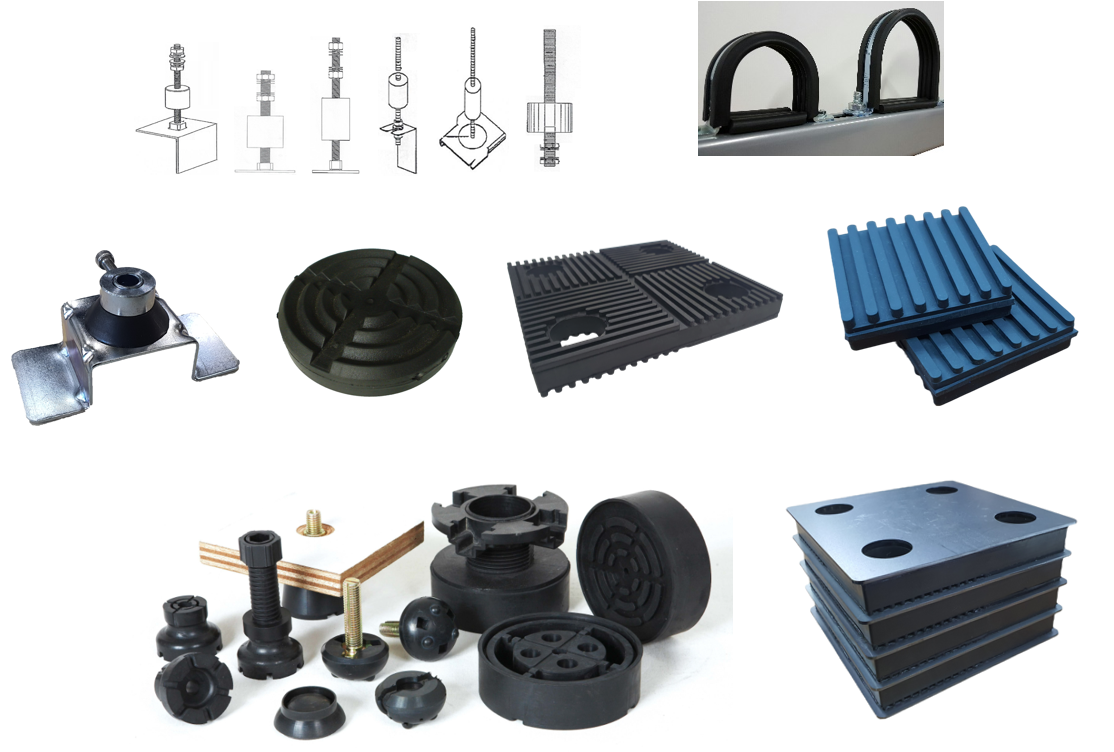

Applications
