Resin-based Noise-insulating Sheet_TP
HOME > PRODUCTS > Noise & Vibration Damping Materials > Resin-based Damping Sheet (TP)

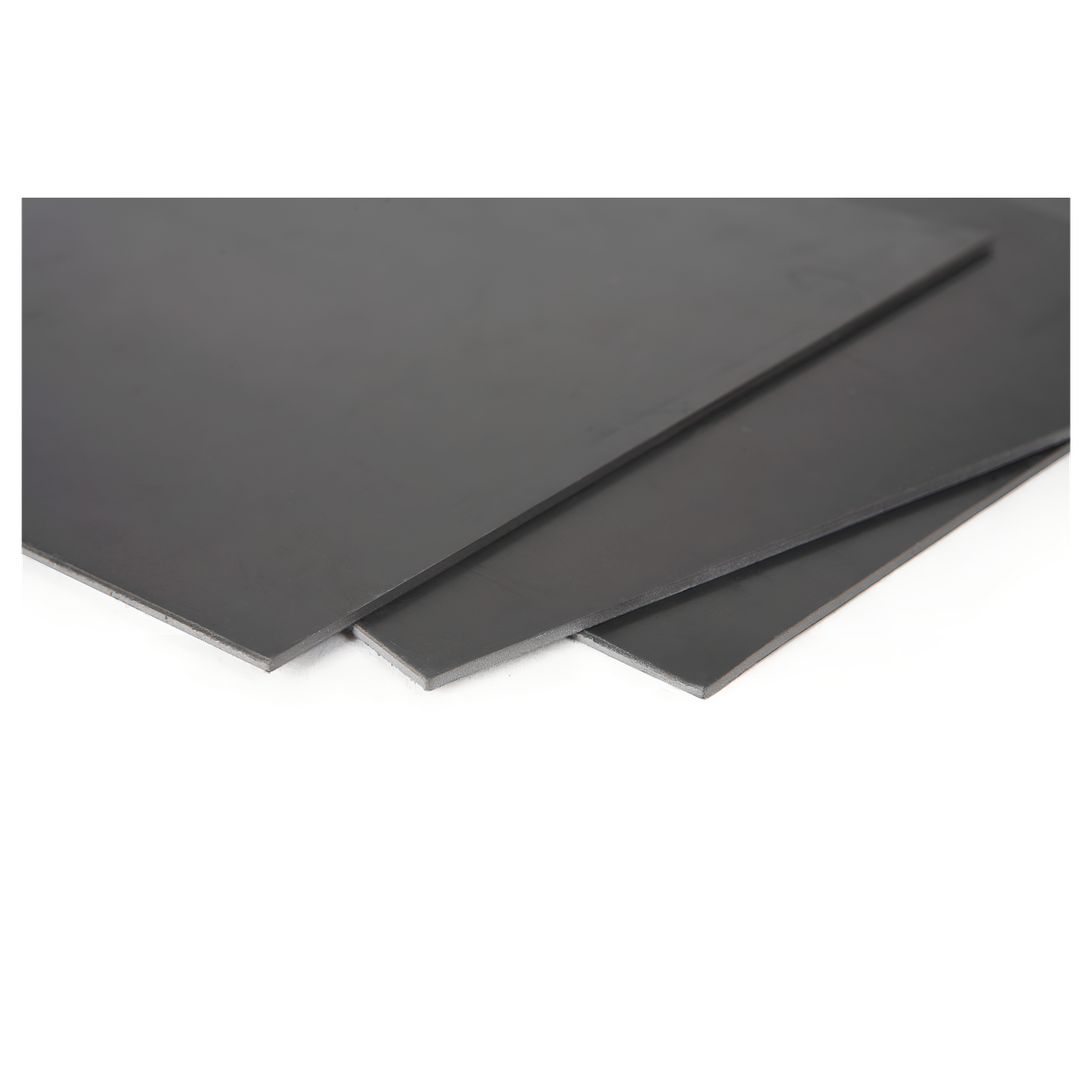

제품 사진 제품 사진
Information
✓ Delivers outstanding damping performance to effectively reduce vibration and resonance noise
✓ Formulated by compounding a thermoplastic resin matrix with functional fillers and specialized additives
✓ Features a well-balanced formulation optimized for vibration damping, sound insulation, and processability
✓ Designed for application on flat surfaces including steel plates, plastic panels, and gypsum boards
✓ Provides easy and immediate vibration control simply by applying the sheet to the target area
✓ Functions as an unconstrained damping layer; adaptable for soundproofing blocks and acoustic composites
✓ Highly customizable thickness and specific gravity to satisfy target acoustic specifications

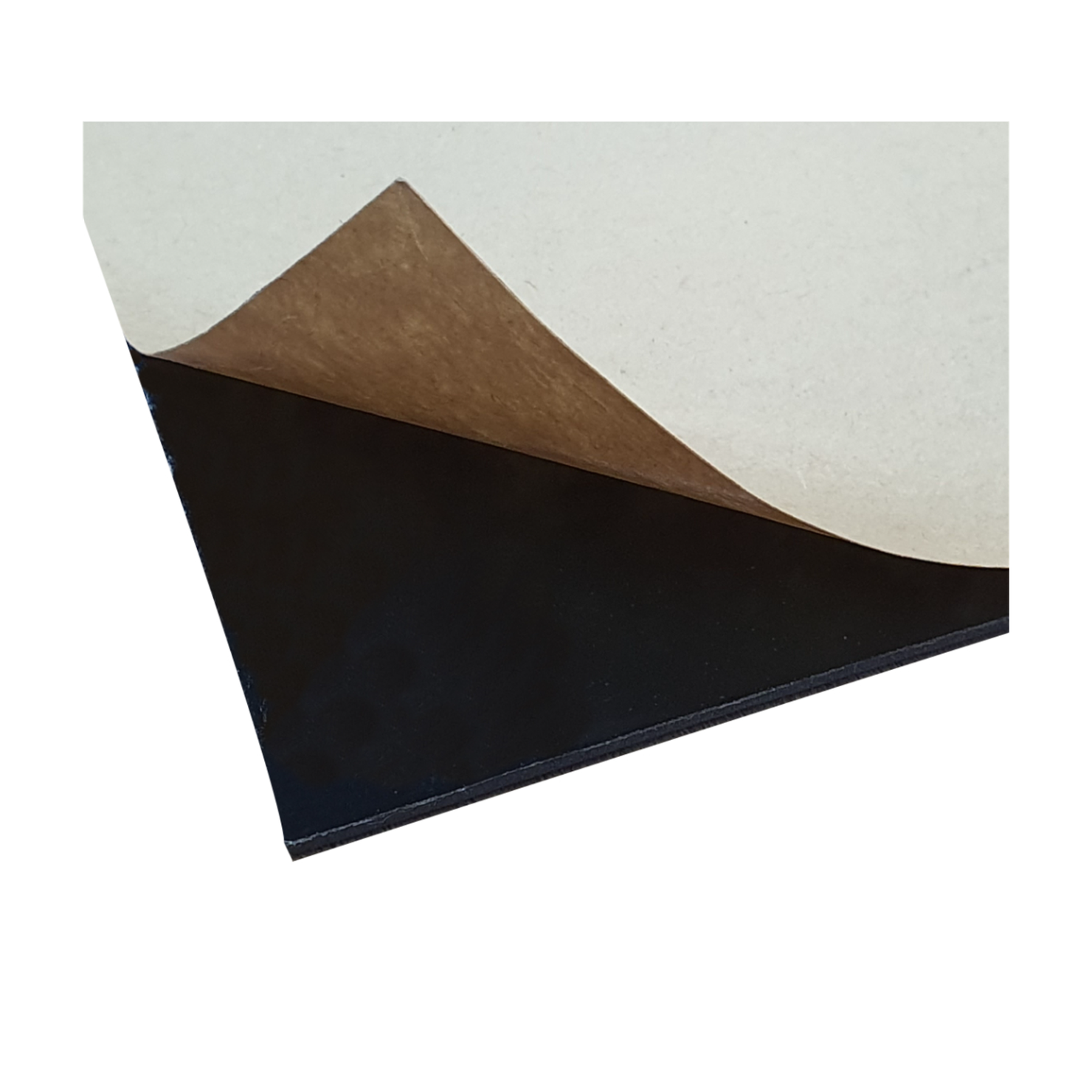

✓ Available with single-sided or double-sided adhesive configurations
Function

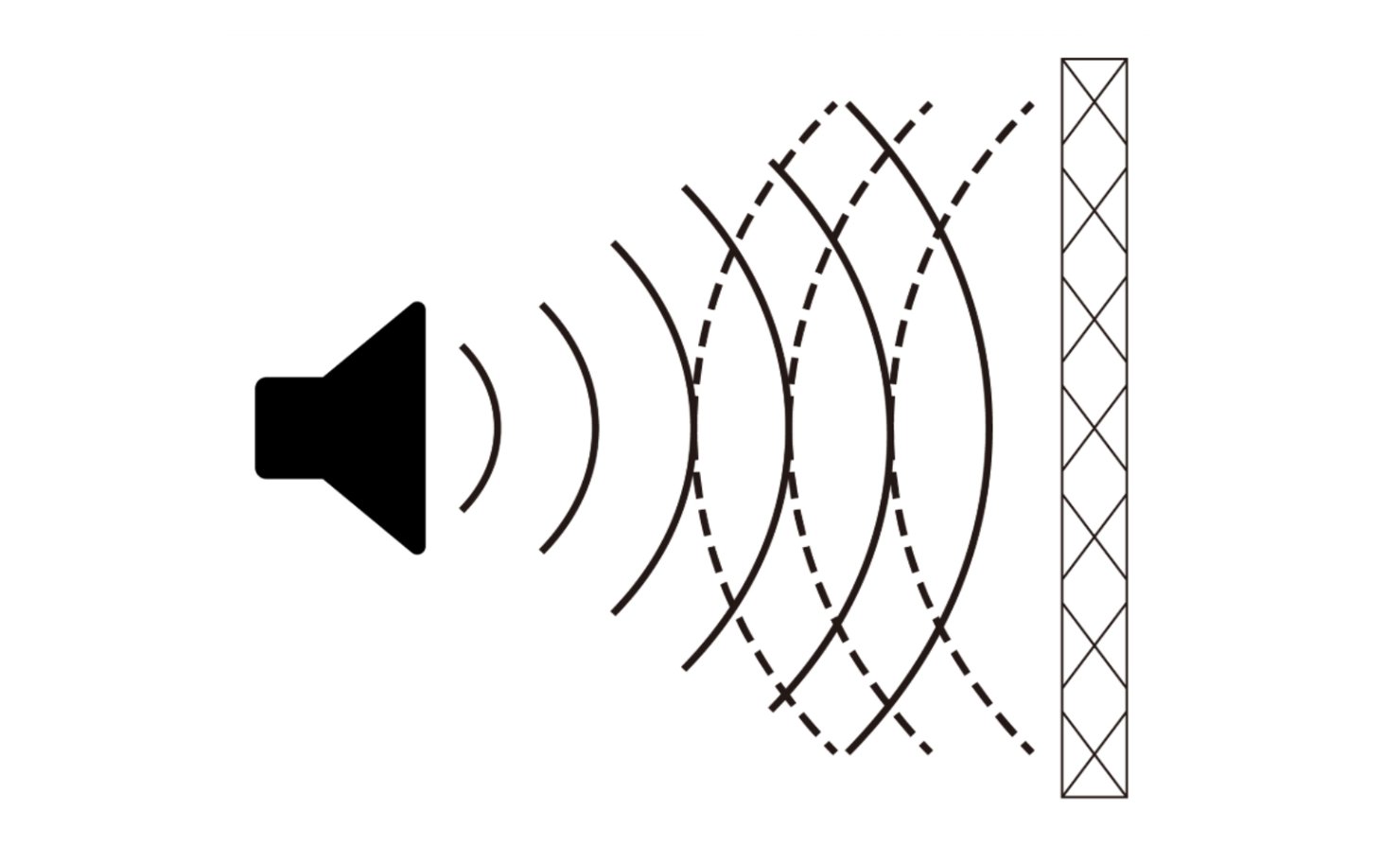

제품 개념도 제품 개념도
General Property
✓ Provides exceptional control and isolation of structure-borne noise
✓ Exhibits superior acoustic and damping performance across a wide frequency range
✓ Maximizes transmission loss to deliver superior sound isolation
✓ Offers highly customizable options for thickness and specific gravity
✓ Excellent long-term reliability with outstanding water and weather resistance
✓ Good physical and mechanical properties for long-lasting structural stability
✓ Engineered with flame-retardant properties to enhance fire safety
✓ Designed to laminate easily with diverse substrates and materials
✓ Available with single-sided or double-sided adhesive for superior workability
✓ RoHS compliant
Technical Data
ShapeSheet (generally Black)
Thickness1, 2, 3, 4 (± 0.2) mm
SizeGenerally 1000 x 1000 mm
Specific GravityGenerally 2.0 (Max. 2.5)
Loss Factor (η)0.1 ~ 0.3
STC2T : 24, 3T : 26 dB
AdhesionPSA, Special Acrylic Adhesive
Fire Property (option)Self-extinguishing, F series : IMO Res.A.653(16)
Test condition : IMO Res. A. 653(16)
Values without a stated test standard are measured in-house.
Source : 제품 카탈로그 (physical_property 표) (2026-09-07)
Special Property

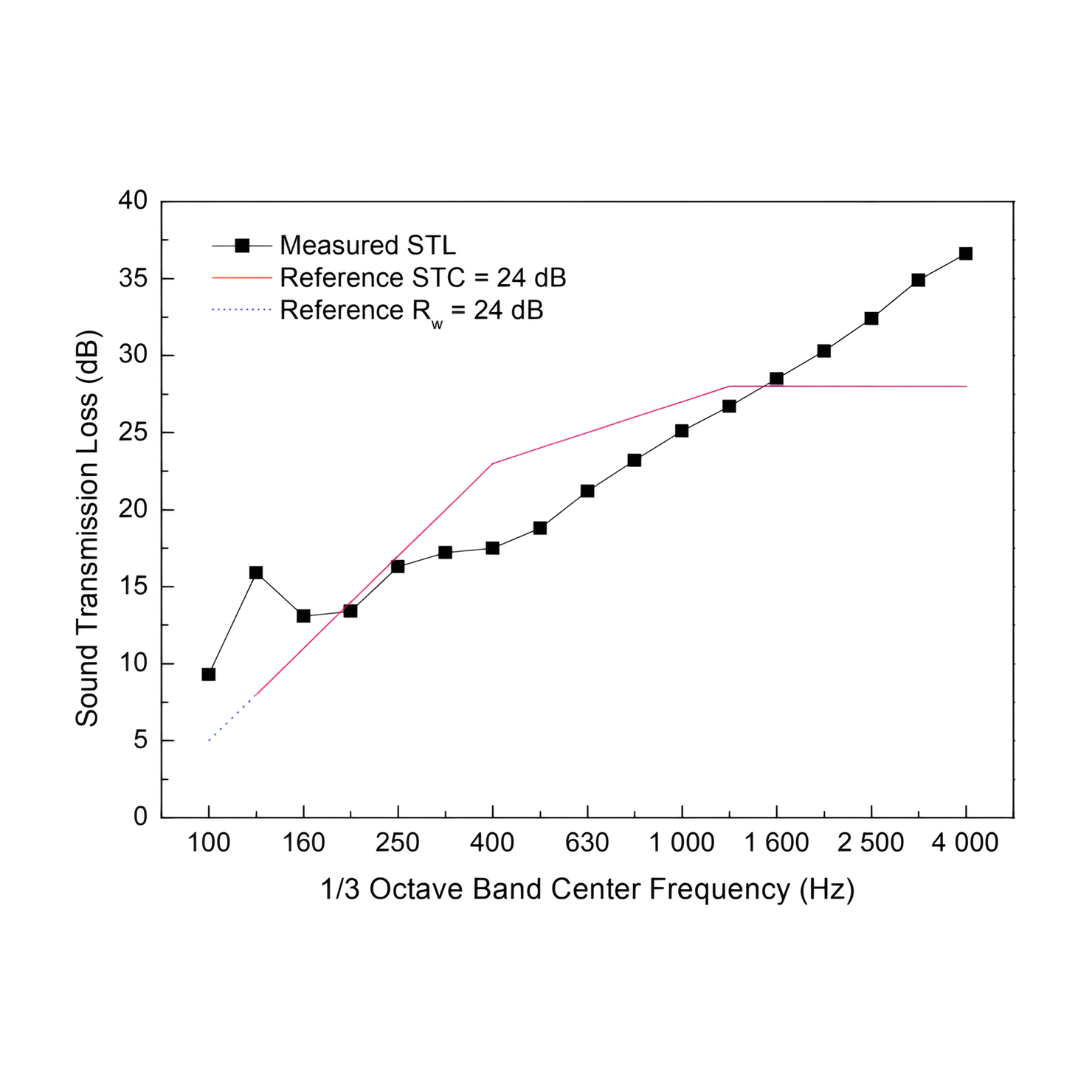

제품 사진Fig. Sound Transmission Loss of Zerony Sheet TP-2

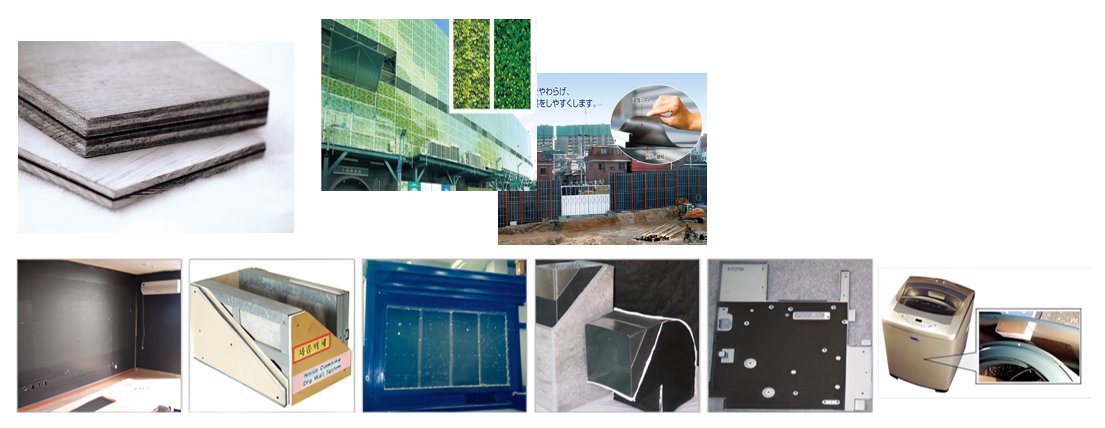

Applications
용도 안내
