Interior Sound-absorption Board_QuieTech
HOME > PRODUCTS > Room Acoustic Interior > QuieTech - Acoustic Interior Panel

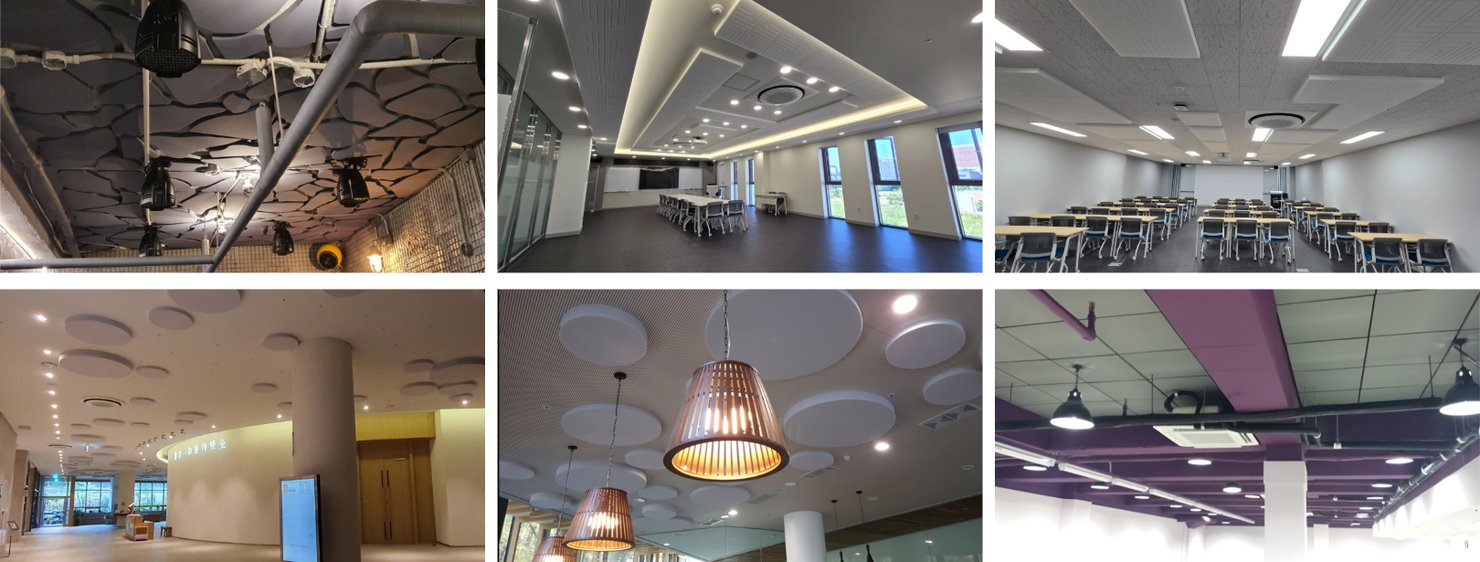

제품 사진
Information

✓ Eco-friendly ultra-lightweight architectural acoustic board (Acoustic Art Board)

✓ High-performance sound-absorbing core engineered
   with 100% open-cell micro-porous melamine foam

✓ 2D contouring, 3D textured carving, custom coloring, and high-resolution digital art printing

✓ Optimizes interior room acoustics and maximizes speech intelligibility
   by precisely controlling reverberation

✓ Seamlessly combines acoustic tranquility with visual elegance for modern,
   sophisticated interior spaces

✓ Ultra-lightweight profile ensures effortless handling, transport, and on-site job convenience

✓ Tool-free, DIY-friendly installation with dedicated adhesive sealant for quick and secure mounting

✓ Composite lamination with high-density PET boards allows customizable surface finishes
   and enhanced durability
Function
제품 개념도기공 구조 확대 사진

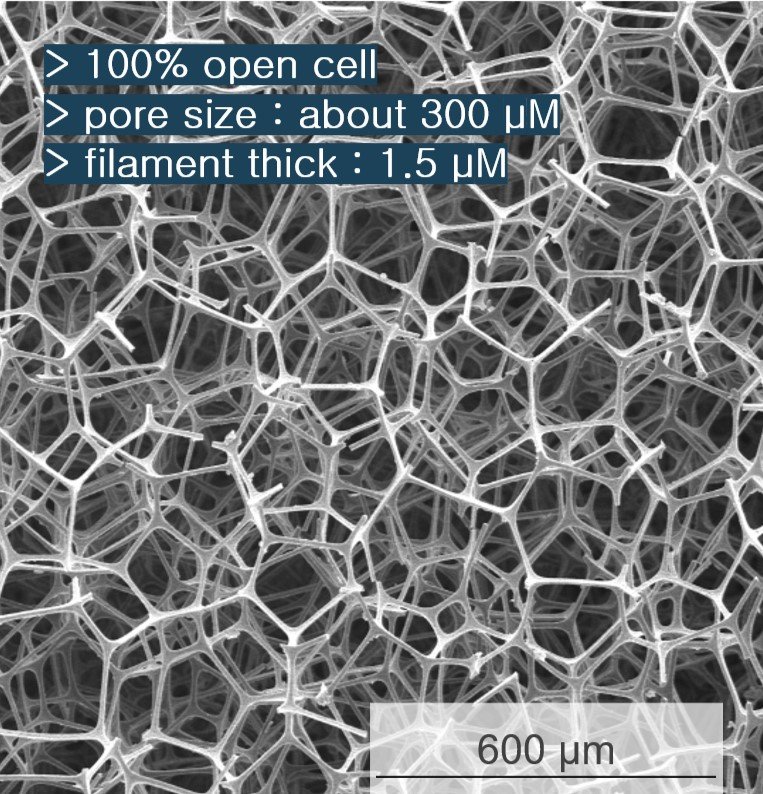

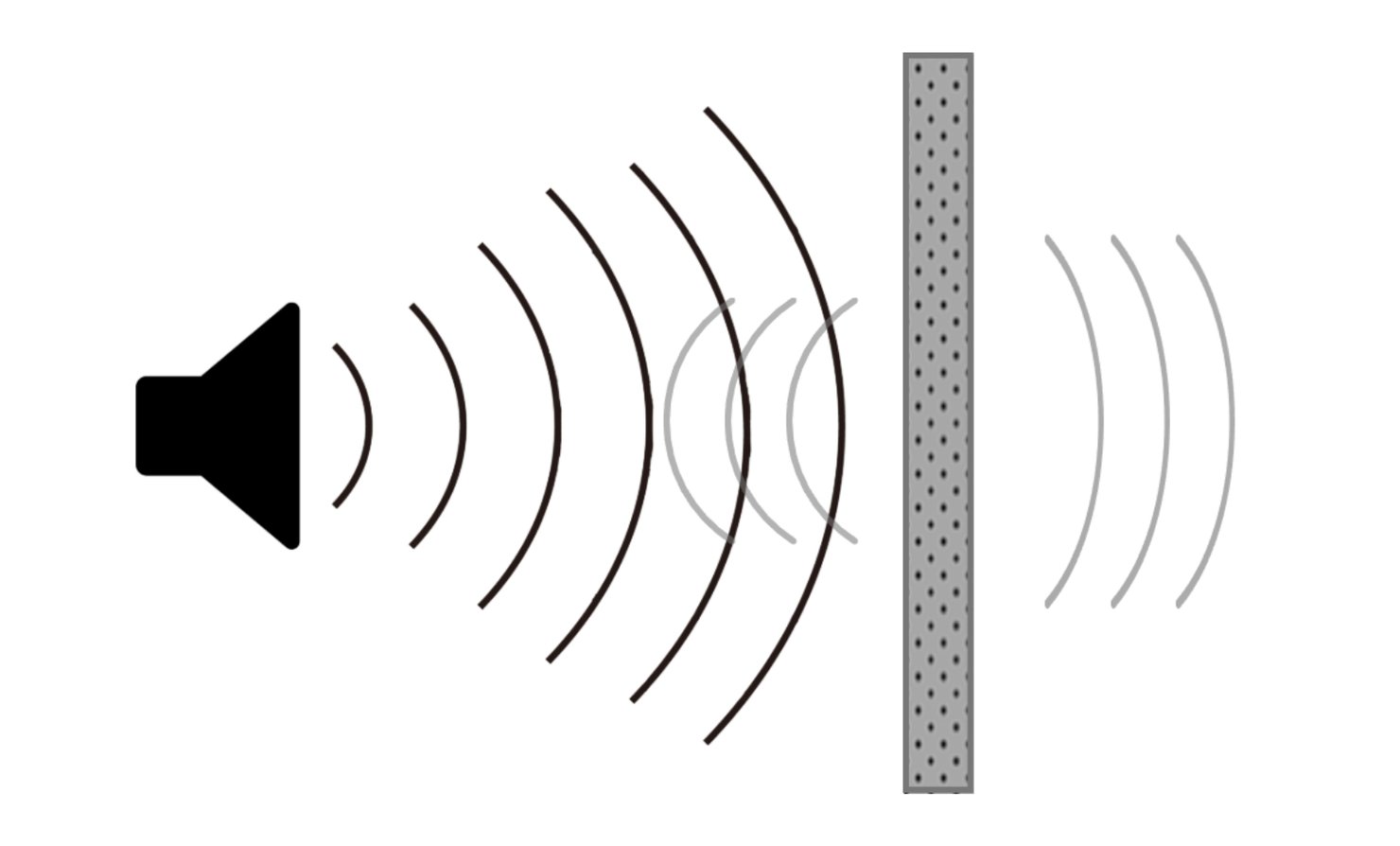

Fig. Sound-absorption Concept                                                                 Fig. Cell structure of melamine foam
General Property
✓ Excellent sound absorption property
✓ Ultralight weight
✓ Aesthetic versatility with diverse 2D and 3D geometric contouring options
✓ Outstanding flame retardancy meeting stringent indoor fire safety codes
✓ Effective control of reverberation time (RT) and fluttering echo noise
✓ Optimizes interior room acoustics by dramatically improving speech intelligibility
✓ Tool-free, simple surface mounting that turns any wall into sophisticated acoustic art
✓ RoHS compliant
Technical Data
ShapeSquare, Round, 3D-Processing, Digital Art Printing
ColorWhite, Light Gray, Color & Digital Art Printing
Thickness25, 50, 75, 100, Custom-Made mm
SizeGenerally 600 x 600, Φ 600, Custom-Made mm
Density9 kg/M3
NRC0.85
Test condition : at 50 mm
Fire PropertySelf-extinguishing, ASTM E84 : Class A, UL 94V0, DIN 4102-1 : B1, BS 476 part 6&7 : M1
Test condition : ASTM E84 / UL 94 / DIN 4102-1 / BS 476
VOC EmissionClass A
Thermal Conductivity0.033 W/mK
Test condition : at 23℃
FixationSpecial Sealant, Chemical Bond
Values without a stated test standard are measured in-house.
Source : 제품 카탈로그 (physical_property 표) (2026-09-07)
Special Property
흡음 성능 그래프
Fig. Sound-absorption Properties of Basotect Series
Applications
용도 안내

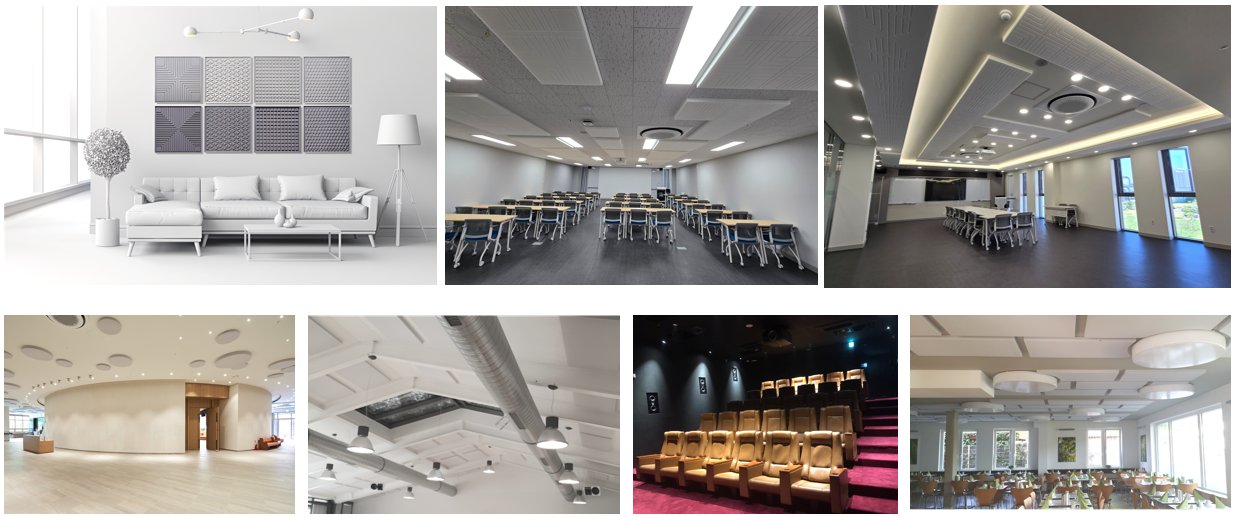

Fig. Various Applications of Basotect Series
