Melt-blown Sound-absorption Sheet_Websuler

HOME > PRODUCTS > Sound Absorption Materials > Melt-blown Soft Sheet (Websuler)
Information
✓ Melt-blown Microfiber Structure:
Dense micro-air pockets between ultra-fine fibers deliver superior sound absorption across mid-to-high frequency ranges.

✓ Eco-Friendly Polypropylene (PP) & Polyester (PET) Fiber:
Composed of non-toxic, odorless fibers to minimize harmful emissions and volatile organic compounds.

✓ Ultra-Lightweight Design:
Significantly lighter than conventional nonwovens or felts, maximizing component weight reduction and fuel/energy efficiency.

✓ Water Repellency, Thermal Insulation & Flame Retardancy:
Water repellency
prevents odors, while delivering outstanding thermal barrier properties and self-extinguishing safety.

✓ High-Efficiency Acoustic Absorption:
Achieves exceptional Noise Reduction Coefficient (NRC) values even at reduced thicknesses compared to standard acoustic materials.

✓ Seamless Lamination with Damping & Barrier Sheets:
Easily thermal-bonded or laminated with damping layers and sound barriers to create customized multi-layer NVH solutions.

✓ Outstanding Formability & Workability:
Fully compatible with thermoforming, precision die-cutting, and ultrasonic welding for seamless application onto complex geometries

Function

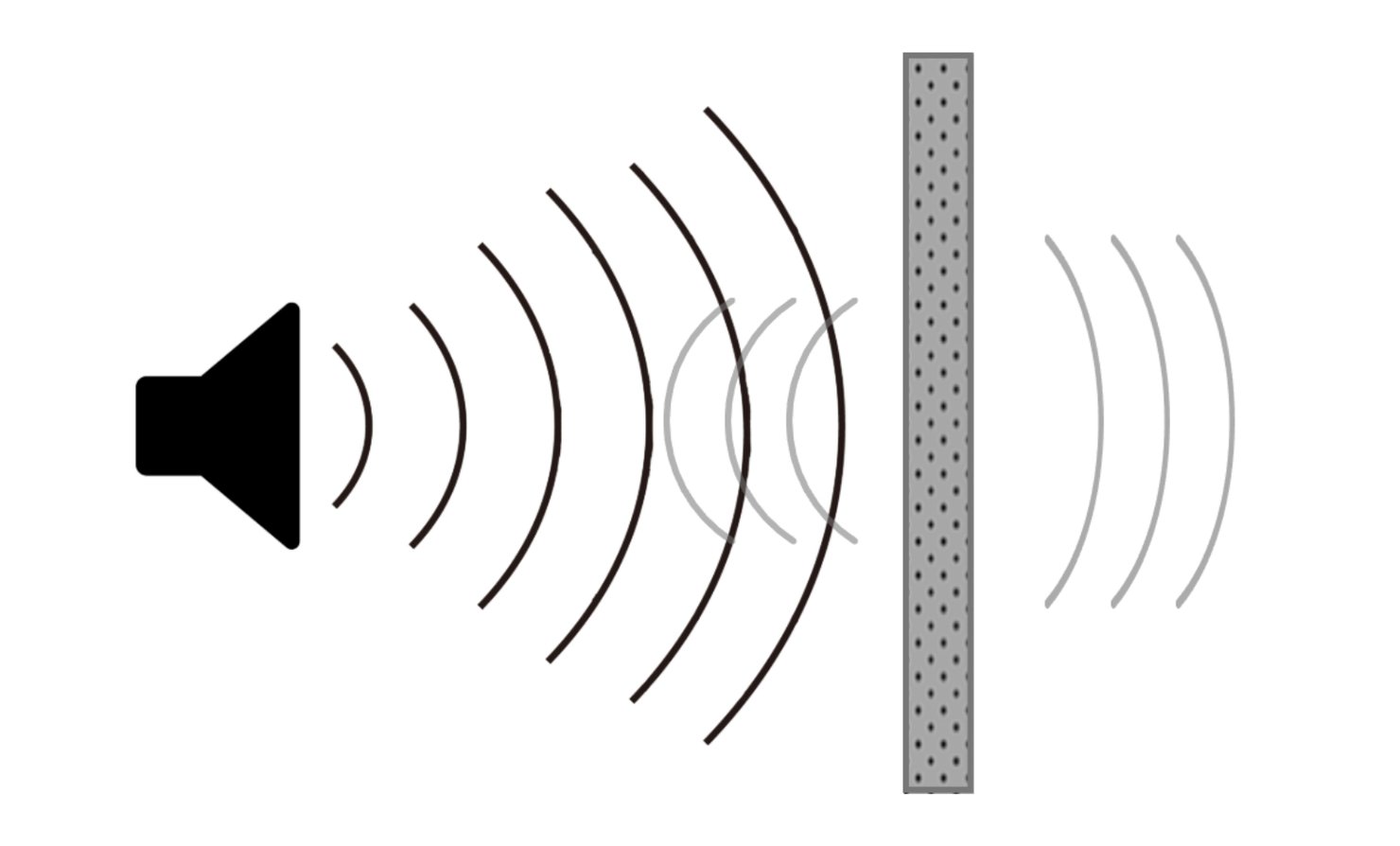

Fig. Sound-absorption Concept
General Property
✓ High-Density Microfiber Web Structure:
    Interlocking microfibers create dense microscopic air pockets,
    delivering outstanding acoustic absorption across mid-to-high frequencies

✓ Ultra-Lightweight & Superior Flexibility:
    Significantly lighter than conventional felts and nonwovens to maximize energy efficiency,
    featuring high flexibility and resilience for seamless contour fitting

✓ Thermal Insulation & Self-Extinguishing Flame Retardancy:
    Superior thermal barrier performance combined with certified self-extinguishing properties
    that prevent flame propagation

✓ Water Repellent :
    Water repellency
prevents water retention and unpleasant odors

✓ Eco-Friendly & RoHS Compliant:
    100% recyclable material that generates no dust or hazardous emissions,
    fully complying with RoHS

Technical Data
ShapeWhite Sheet or Roll (Facing : white scrim)
MaterialPP (Polypropylene)
Thickness6 (300G), 8 (400G), 12 (600G), 15 (800G), 20 (1000G) mm
Width (mm)500, 750, 1000, 1500
Length (M/roll)30 ~ 100
Weight (g/M2)300 / 400 / 600 / 800 / 1000
Fire PropertySelf-extinguishing
NRC0.61 (600G, 12T), 0.70 (800G, 15T), 0.80 (1000G, 20T)
Values without a stated test standard are measured in-house.
Source : 제품 카탈로그 (physical_property 표) (2026-09-07)
Special Property

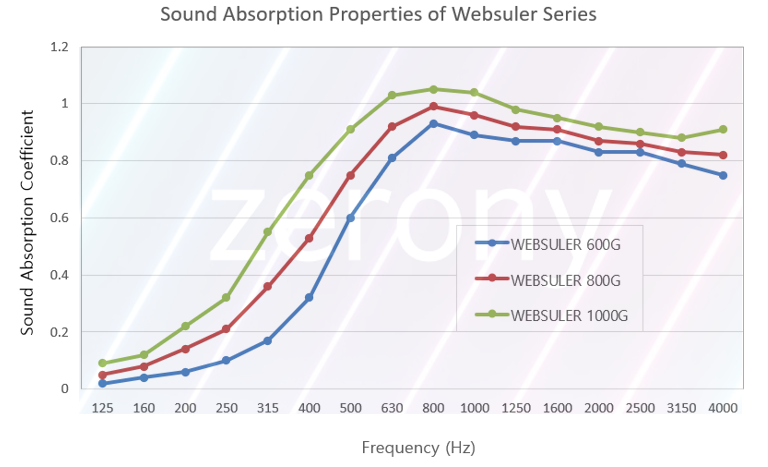

Fig. Sound absorption Properties of Websuler Series
Applications

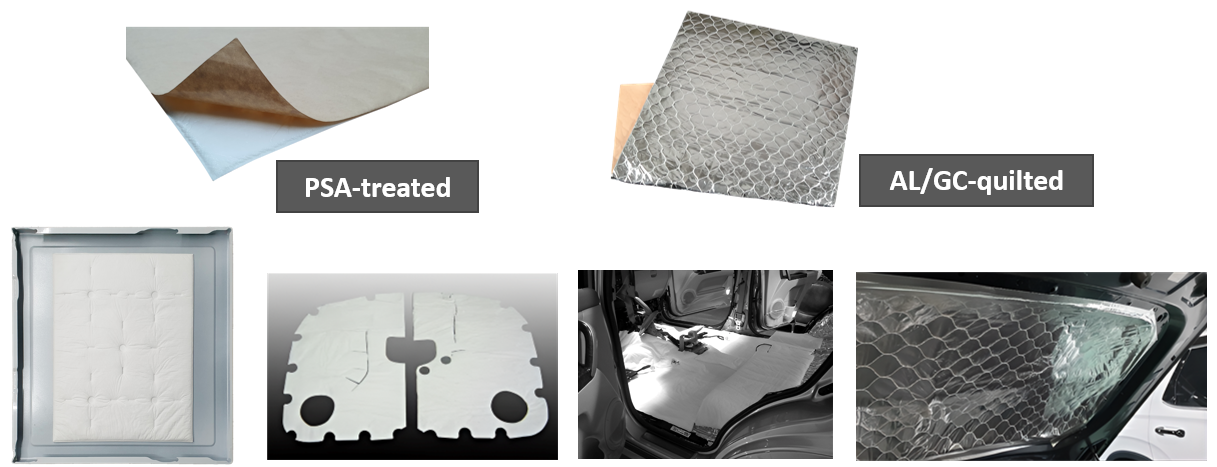

Fig. Variou Applications of Websuler Series
